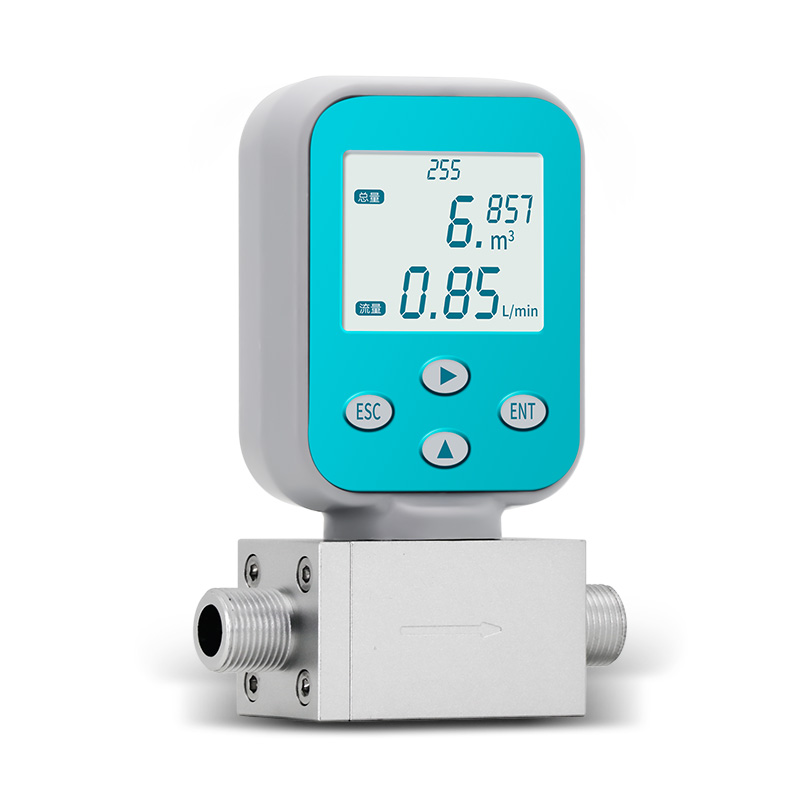

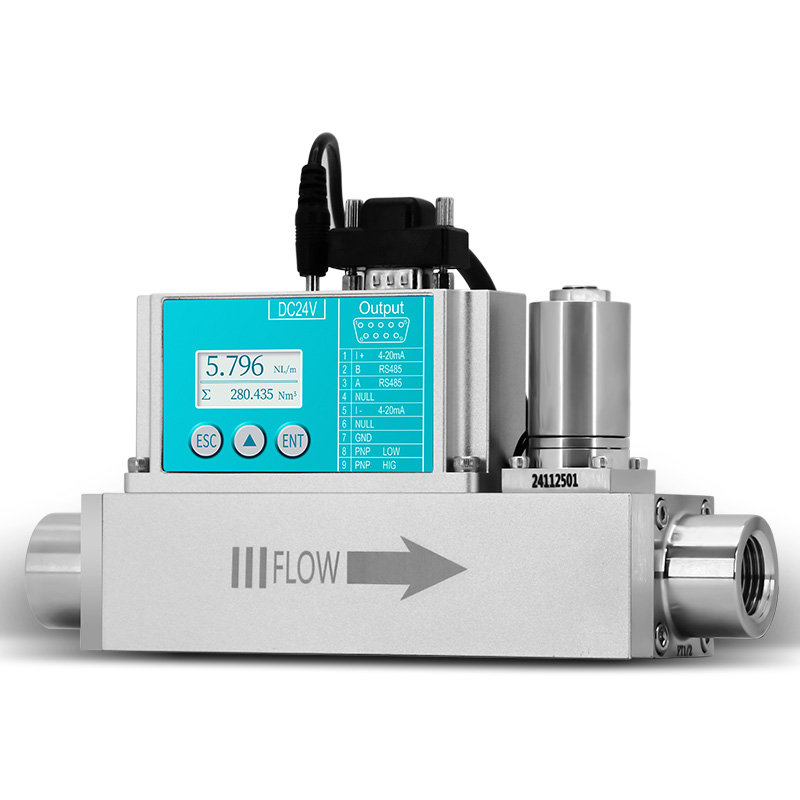

Micro Thermal Gas Mass Flow Meter
The micro-type physical quantity flow rate is calculated by controlling the flow rate of each category.
This is a series of advanced micromechanical systems (MEMS) flow sensors for uniform production and application.
Every category is clean. Unique sealing technology can be used for various pipe diameters, low volume, easy packaging, and unnecessary
Temperature power measurement, changeable capacity type or differential type flow meter.
Product Advantages
Product Introduction
Product features
Utilizing a microelectromechanical flow sensor chip, the sensor features high accuracy and strong anti-interference capabilities.
The sensor has stable zero-point performance.
It offers high accuracy and good repeatability within the measuring range.
It features a standard mechanical interface for easy installation. RS485
communication output with standard MODBUS RTU protocol.
It uses an LCD to display instantaneous flow rate and cumulative flow.
Optional 4-20mA standard current output and pulse output are available.
It can display positive and reverse flow rates, as well as positive and negative cumulative flow.
Technical parameters
| Measurement accuracy | The flow rate is less than 100NL/min | ±(1.0+0.4FS)% | |
| The flow rate is greater than 100NL/min | ±(1.5+0.2FS)% | ||
| Working Power Supply | DC12-24V/100mA | Preheating time | 3-4 minutes |
| Response time | 50ms | Preheating time | 4-20mA\RS485 |
| Zero point drift | ±20mV | Display format | Instantaneous flow rate, cumulative flow rate |
| Operating temperature | -10~55℃ | Working humidity | <95% RH (no condensation, no icing) |
| Storage temperature | -10~65℃ | Communication methods | RS485 (Modbus RTU protocol) |
| Work pressure | ≤1.0MPa | Calibration medium | Air (25℃, 101.325 kPa) |

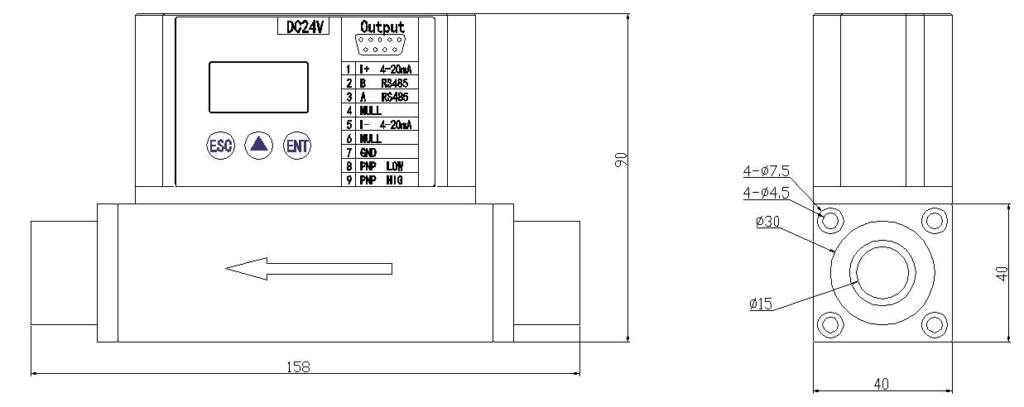

Mechanical Dimensions
