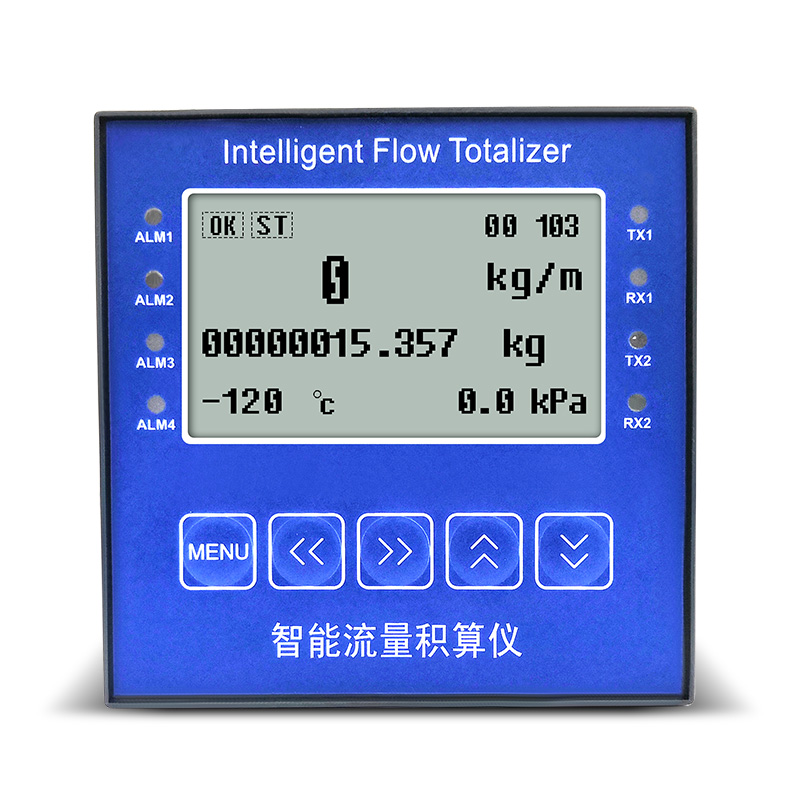

GTXSJ96 Flow Totalizer
The sophisticated flow totalizer is an instrument based on an ARM microprocessor, working in conjunction with various flow transmitters and sensors to accurately measure and calculate flow rates for different fluid media using multiple mathematical models.
It processes, displays, controls, transmits remotely, communicates, and prints various signals such as temperature, pressure, and flow rate, forming a digital acquisition and control monitoring system. It is widely used in trade settlement and factory metering management networks in industries such as petrochemicals, chemicals, metallurgy, power, light industry, pharmaceuticals, and urban gas.
Product Advantages
Product Introduction
Product features
| Number of channels | Flow channel / Temperature channel / Pressure channel | Communication method | RS485 communication and USB export function | |
| External dimensions | 96*96mm | Opening dimensions | 92*92mm | |
| Signal input | Analog input | Pulse input | ||
| Thermocouple types: K, E, B, J, N, T, S (customizable) | Waveforms: rectangular wave, sine wave, triangular wave | |||
| Pt100, Pt1000 (Please specify before ordering) | Amplitude: Greater than 4V | |||
| Current: 0-10mA, 4-20mA | Frequency: 0~10KHz (customization available) | |||
| Signal output | Analog output | Communication Output | Digital output | Power supply output |
| DC 0~10mA | RS232, RS485, | Relay digital output | DC 24V | |
| DC 4~20mA | Ethernet | AC220V; DC24V | DC 12V | |
| Accuracy | 0.2% FS/day or 0.5% FS/day. Frequency conversion accuracy: ±1 pulse (LMS), better than 0.2%. | |||
| Measurement range | Flow rate and compensation values range from -999999 to 999999. Cumulative flow ranges from 0 to 99999999.9999. | |||
| Display | The backlit 128*64 dot matrix LCD displays flow rate, energy, temperature, pressure, density, enthalpy, current, alarms, etc. | |||
| Control/Alarm | Optional relay upper and lower limit control (alarm) outputs, LCD and LED output indicators are available. | |||
| Features relay control (alarm) (up to 2 alarm relays available) | ||||
| Alarm types: Flow rate upper and lower limits, temperature upper and lower limits, pressure upper and lower limits | ||||
| Real-time or scheduled printing to a serial thermal printer via the RS232 interface, with a maximum of 8 printouts per day. | ||||
| Protect | The accumulator will retain its value for over 20 years after the power is turned off, and will automatically reset when the power is insufficient. | |||
| Automatic reset (watchdog) self-recovering fuse for abnormal operation. | ||||
| Short-circuit protection; Password protection for important data. | ||||
| Working environment | Operating temperature: -20~60°C; Relative humidity: 85% RH, keep away from strong corrosive gases. | |||
| Power supply method | Standard type: AC 220VAC, DC 24VDC; Backup power supply: +12V, 20AH, lasting 72 hours | |||
| Power consumption | ≤10W | |||
