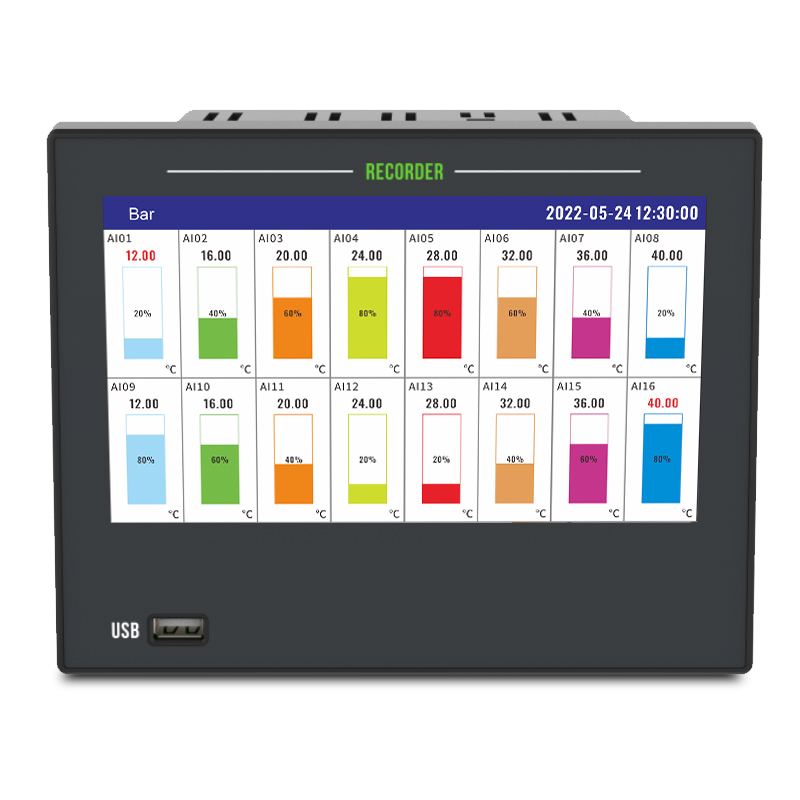

GT72R Touchscreen Paperless Recorder
This product is an industrial paperless data logger with a 7-inch color touchscreen display and up to 32 channels of isolated universal signal input. It can accept industrial standard signals such as current, voltage, thermocouples, RTDs, and frequency (customizable). It can also be configured with alarm relay output and current transmitter output. It acquires signals in real time, saves channel data to form historical data, and records at intervals as fast as 1 second. Historical data can be quickly transferred via USB devices. It supports RS485 and Ethernet communication interfaces. Data and status are displayed in various formats including numerical values, bar graphs, and curves.
Product Advantages
Product Introduction
Product features
High-definition 7-inch color touchscreen display
Standard 138*138 mm cutout size
High-speed USB large-capacity flash drive interface
Up to 32 universal isolated input channels
Up to 16 relay outputs
Up to 8 current transmitter outputs
2 channels of 24VDC power distribution
RS485 communication interface – standard Modbus RTU
Ethernet communication interface – standard Modbus TCP
RS485 acquisition interface – standard Modbus RTU
Pin-type micro printer interface
64MB memory, 900,000 historical records
256 channel alarm records
256 power-off records, operation logs
Built-in Chinese and English language switching
Supports Chinese Pinyin tag configuration
Supports channel virtual calculation configuration
24VDC power reverse connection protection
技术参数
| project | Specification |
| Recorder dimensions | Panel dimensions: 187*147mm, depth: 145mm, mounting hole size: 138*138mm |
| Display | 7-inch color touchscreen LCD, 800*480 resolution |
| Measurement Channels* | Up to 24 universal analog inputs, expandable to 32 channels (frequency signals require customization) |
| Measurement Accuracy | 0.2% F.S. accuracy |
| Sampling Period | 1 second sampling rate |
| Alarm Relay* | 16 normally open relays, 250VAC 3A, 30VDC 3A (resistive load) |
| Transmitter Output* | Up to 8 channels of 4-20mA transmitter output, load ≤750Ω, 0.2% accuracy |
| 24VDC Power Distribution | 2 channels of 24VDC±10%, total output current ≤120mA |
| RS485 Communication | 1 RS485 communication interface, standard Modbus RTU protocol |
| Ethernet Communication* | 1 Ethernet communication interface, standard Modbus TCP protocol (≤3 connections) |
| RS485 Data Acquisition* | 1 RS485 acquisition interface, standard Modbus RTU protocol |
| USB Interface | USB2.0, supports 32G high-capacity USB flash drive |
| Micro-printer Interface* | TTL miniature printer interface |
| Power Supply | AC 100-240VAC 50Hz / DC 24VDC±10% (reverse polarity protection) Power ≤20W |
| Warm-up Time | 30 minutes after power-on |
| Operating Environment | Temperature: -10~60℃ Humidity: 0~85%RH (non-condensing) |
| EMC Interference Immunity | Power supply surge 2000V, signal surge 1000V |
| ESD Electrostatic Discharge Protection | Contact discharge 4000V, air discharge 8000V |
| Withstand Voltage | AC220V power supply: 1500V between terminals and ground / DC24V power supply: 500V between terminals and ground / Isolated terminals: 1000V between terminals |
| Insulation Resistance | AC220V power supply: DC test voltage 500V, 20MΩ / DC24V power supply: DC test voltage 100V 5MΩ |
| Recording Interval | 1 second, 2 seconds, 5 seconds, 10 seconds, 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour |
| Data Memory | 64MB memory, 900,000 records |
| Recording Duration | 32 channels, 1-second recording interval, 10 days of recording, dynamic cyclic overwrite storage |
| Other Recording Features | 256 entries each for alarm list, power failure log, and operation log, with cyclic overwrite storage |
| Mounting Method | Panel-mounted, indoor use, IP65 panel protection rating |
| Recorder Weight | 1100 grams |
